Key Features
- Wide Size Range: Counts fingerlings from 3 to 15 cm.
- High Precision: Over 98% accuracy with advanced AI image recognition.
- Fast Processing: Handles up to 300,000 fingerlings per hour (3 cm size).
- Durable Construction: Made from 304 stainless steel for corrosion resistance.
- Energy Efficient: Low power consumption with a 350W power rating.
- User-Friendly Design: Modular components for easy setup and maintenance.
- Real-Time Data: 720p camera with 30 fps frame rate for instant counting results.
- Single-Person Operation: Easy to operate, minimizing labor costs.
- Data Visualization: Real-time display of counting results and historical records.
- Flexible Installation: Includes a water pump module for versatile use.
Technical Specifications
Device Name | Fordy Auto Big Fish Counter 3-15cm
Model Number | FC360
Fingerling Size Range | 3-15cm
Dimensions | 950 × 455 × 950mm
Weight | <60kg
Counting Capacity | 300,000 tails/hour (3cm fingerlings)
Accuracy | 98%+
Operating Voltage | 220V
Power Rating | <200W
Material | 304 Stainless Steel
IP Rating | IPX3 (Not suitable for outdoor use in rain)
Camera Resolution | 720p
Frame Rate | 30 fps
Operating Temperature | 10°C to 55°C
How It Works

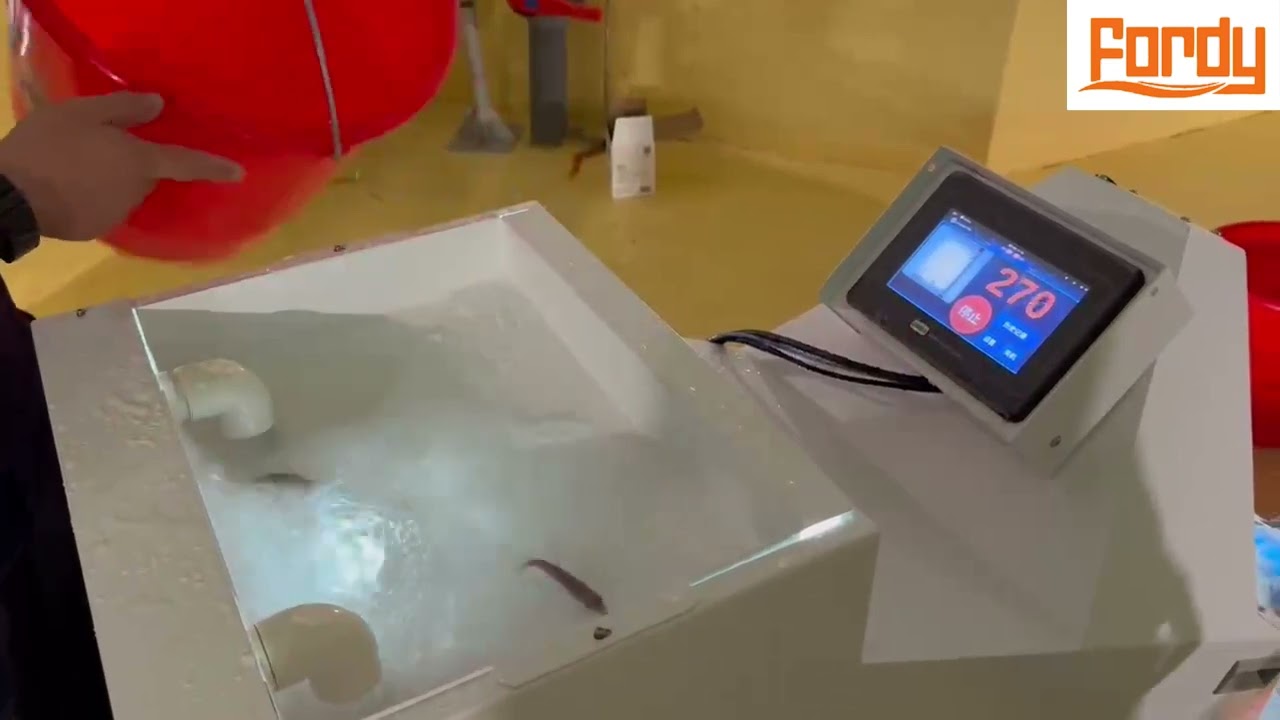

The Fordy Auto Big Fish Counter 3-15cm uses a high-definition camera to capture real-time images of the counting area. The image data is processed by an onboard computer using independently developed AI algorithms to identify and count individual fingerlings as they pass through the counting channel. The counting process is fully automated, with the data displayed in real-time on the built-in touchscreen interface. This significantly reduces counting errors and improves overall operational efficiency.
Easy Setup and Operation
- Assembly: Connect the included track, support frame, and universal wheels. Attach the water pump to the hose and place it in a clean water tank.
- Power Connection: Plug the device into a 220V power socket.
- System Startup: Turn on the computer module through the back panel.
- Counting Setup: Choose the appropriate fingerling size range from the touchscreen interface.
- Counting Process: Click “Start” to begin counting. The device will automatically track and display the total count in real-time.
- Data Management: Access historical records and adjust settings directly from the user interface.
- Shutdown: Use the software shutdown function to avoid damaging the internal computer module.
Why Choose the Fordy Auto Big Fish Counter 3-15cm?
- Highly Accurate: Achieves 98%+ accuracy for precise fingerling counts, reducing human error.
- High Efficiency: Processes up to 300,000 fingerlings per hour, boosting productivity.
- Built to Last: Durable stainless steel frame designed for long-term use.
- Safe and Reliable: IPX3 water resistance for indoor and sheltered outdoor use.
- Easy to Operate: Plug and play design with intuitive controls and modular components.
- Versatile Applications: Ideal for fish hatcheries, large-scale seed transport, and aquaculture research.
- Low Maintenance: Modular design for easy assembly and component replacement.
Applications
- Aquaculture Hatcheries: Efficient counting for fish seed production.
- Commercial Fish Farms: Streamlined inventory management.
- Research Facilities: Accurate data collection for marine biology studies.
- Fish Seed Transport: Reliable and fast counting during live transport.
Maintenance and Care
- Clean the counting channel every three months to maintain accuracy.
- Avoid exposing the device to direct sunlight, rain, or excessive moisture.
- Use only clean, fresh water for the water supply module.
- Regularly inspect the camera lens and computer module for dust or debris.
